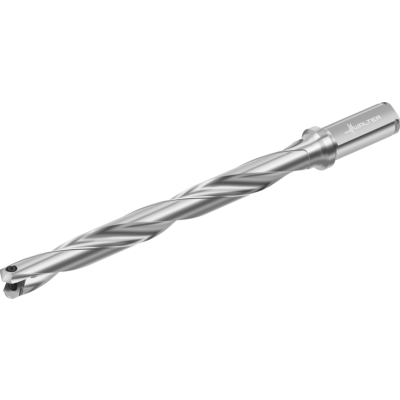

Products Cutting tools Holemaking Solid drilling Point drills Drills with replaceable inserts, Walter Tools 10xDc insert drills D4140-10-F D4140-10-15.00F16-B
Exchangeable-tip drills

D4140-10-15.00F16-B NEW 2021

EAN-code: 0665878766
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-10xDc-Icon D-M-Z2-Icon D-Spitzenw-140-Icon
P6006 – Can be used without pilot drilling up to 10 × Dc
P
M
K
N
S
H
O
VAT 0% 530,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W-DI-D4140-10-F-D-01
Enlarge
Description Symbol Value
Number of indexable inserts
Number of WSP
1
Cutting edge diameter
Dc min
15 mm
Connection diameter
d1
16
Maximum cutting diameter
Dc max
15,99 mm
Flange diameter
d4
20 mm
Functional length
l4
185 mm
Shank length
l5
48 mm
Cutting edge length
Lc
150 mm
Tool designation
Designation
D4140-10-15.00F16-B
Possible indexable inserts
Type
P600 . -D15, ..
Weight
0,21 kg
Seat size
B
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI P6006 WTZ P 01
P6006
Exchangeable tip
Show variations
P
M
K
N
S
H
O
W DI P6005 CU P 01
P6005
Exchangeable tip
Show variations
W DI P6004 ANTHRA P 01
P6004
Exchangeable tip
Show variations
W DI P6003 GREY P 01
P6003
Exchangeable tip
Show variations
W-DI-P6001-BLUE-P-01
P6001
Exchangeable tip
Show variations
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A 391 27 CAPTO P 01
391.27-CAPTO
Adaptor for drilling and reaming tools
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
