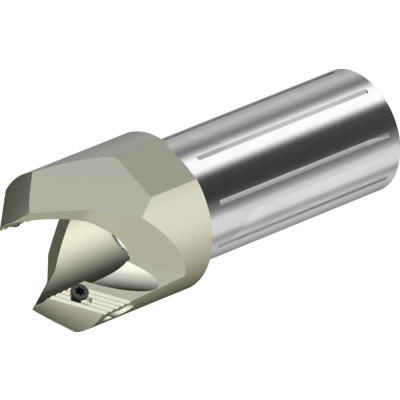

Chamfering tool

D4580-45-14.00A20-VC09

EAN-code: 0751127766
D-chamferdrilling-blind-hole-Icon D-chamferdrilling-thru-hole-Icon
D-M-Z2-Icon
P
M
K
N
S
H
O
VAT 0% 549,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W-DI-D4580-D-01
Enlarge
Description Symbol Value
Number of indexable inserts
No. of inserts
2 PCE
Minimum cutting diameter
Dcmin
12,1 mm
Shank diameter
d1
20 mm
Connection diameter
d11
14
Maximum cutting diameter
Dc max
14 mm
Flange diameter
d4
3 mm
Functional length
l4
25 mm
Clamping length
l5
46,5 mm
Tool designation
Designation
D4580-45-14.00A20-VC09
Possible indexable inserts
Type
VC .. 09 ..
Weight
WT
0,07 kg
Compatible products
Products
Adaptors
Accessories
Assembly parts
VCGX-ACFR-TTGPVD-P-01
VCGX
Positive rhombic 35°
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_WEDGES
Wedge
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
