Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling Pilot drills DB131-02-A1, Supreme 4063464487929

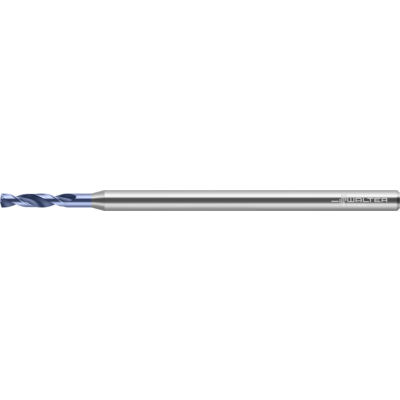

Solid carbide micro pilot drills with coolant-through

DB131-02-02.000A1-WJ30EL NEW 2022

EAN-code: 4063464487929
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-2xDc-Icon D-IK-Icon D-Spitzenw-150-Icon
P
M
K
N
S
H
O
VAT 0% 78,90 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T-DR-DB131-02-A1-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
2 mm
Shank diameter
d1
3 mm
Flute length
l2
10 mm
Shank length
l5
42 mm
Cutting edge length
Lc
7 mm
Overall length
l1
57 mm
Tool designation
Designation
DB131-02-02.000A1-WJ30EL
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
