Products Cutting tools Holemaking Solid drilling Solid carbide drills Without internal cooling 8xDc DB133 Supreme 4031132374116

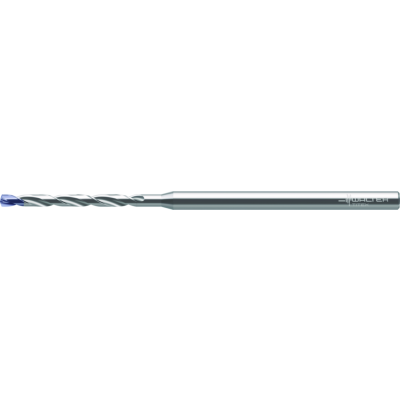

Solid carbide micro twist drills

DB133-08-01.100A0-WJ30ER

EAN-code: 4031132374116
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-8xDc-Icon D-K-extern-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 77,90 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR A6478 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
1,1 mm
Shank diameter
d1
3 mm
Flute length
l2
13 mm
Shank length
l5
35 mm
Cutting edge length
Lc
11 mm
Overall length
l1
54 mm
Tool designation
Designation
DB133-08-01.100A0-WJ30ER
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
