Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling Pilot drills Solid carbide drill 180° DC118 4063464352128

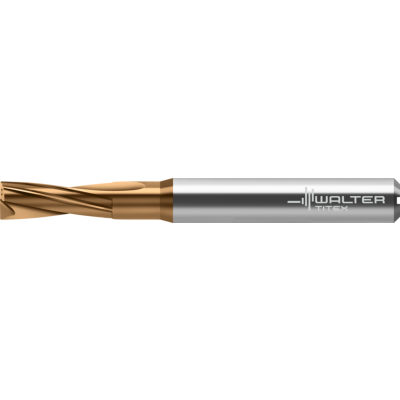

Solid carbide pilot drill

DC118-02-04.800A1-WJ30ET NEW 2022

EAN-code: 4063464352128
D-drilling-convex-Icon D-drilling-cross-hole-Icon D-drilling-inclination-Icon D-drilling-thru-hole-all-Icon D-pilot-drilling-180-Icon
D-2xDc-Icon D-IK-Icon D-Spitzenw-180-Icon
Special diameter tolerance for XD technology
P
M
K
N
S
H
O
VAT 0% 116,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W DR DC118 02 A1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
4,8 mm
Shank diameter
d1
6 mm
Flute length
l2
18 mm
Shank length
l5
42 mm
Drilling depth
Lc
12,1 mm
Overall length
l1
66 mm
Tool designation
Designation
DC118-02-04.800A1-WJ30ET
Compatible products
Adaptors
Products
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER20
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER16
DIN 6499 ER collets
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W DI D4580 VIOLETT P 01
D4580-METRIC
Chamfering tool
Show variations
