Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling Pilot drills Solid carbide drill 180° DC118 4063464352142

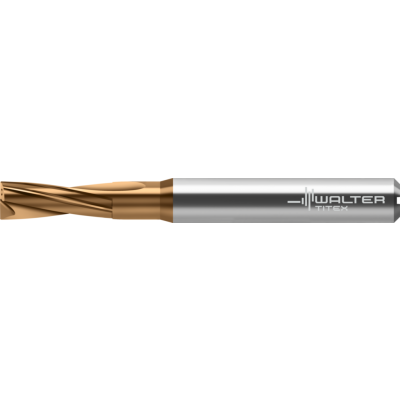

Solid carbide pilot drill

DC118-02-05.500A1-WJ30ET NEW 2022

EAN-code: 4063464352142
D-drilling-convex-Icon D-drilling-cross-hole-Icon D-drilling-inclination-Icon D-drilling-thru-hole-all-Icon D-pilot-drilling-180-Icon
D-2xDc-Icon D-IK-Icon D-Spitzenw-180-Icon
Special diameter tolerance for XD technology
P
M
K
N
S
H
O
VAT 0% 116,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W DR DC118 02 A1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
5,5 mm
Shank diameter
d1
6 mm
Flute length
l2
20 mm
Shank length
l5
42 mm
Drilling depth
Lc
13,5 mm
Overall length
l1
66 mm
Tool designation
Designation
DC118-02-05.500A1-WJ30ET
