Products Cutting tools Holemaking Solid drilling Solid carbide drills Drills without internal cooling 3xDc DC150 Perform DC150-03-D0, DIN 6535 HE + HB 4031132399911

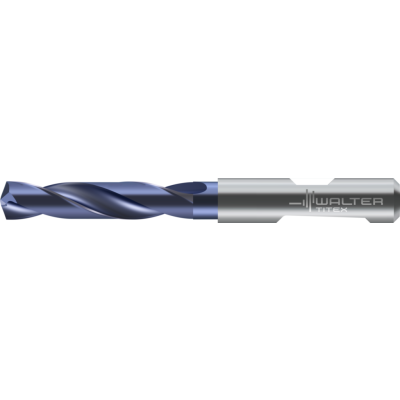

Solid carbide twist drills

DC150-03-03.000D0-WJ30RE

EAN-code: 4031132399911
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-3xDc-Icon D-DIN6537-K-Icon D-K-extern-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 46,80 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC150 03 0850 D0 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
3 mm
Shank diameter
d1
6 mm
Flute length
l2
20 mm
Shank length
l5
36 mm
Drilling depth
Lc
14 mm
Overall length
l1
62 mm
Tool designation
Designation
DC150-03-03.000D0-WJ30RE
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
