Products Cutting tools Holemaking Solid drilling Solid carbide drills Drills without internal cooling 5xDc DC150 Perform DC150-05-06.000A0-WJ30TA

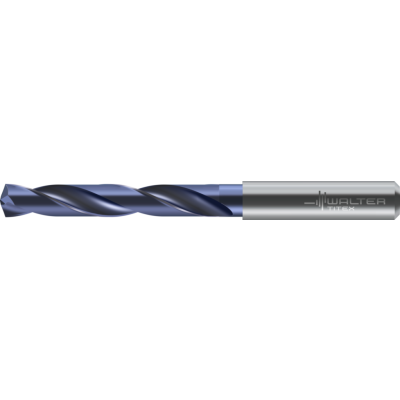

Solid carbide twist drills

DC150-05-06.000A0-WJ30TA

EAN-code: 4031132422527
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-DIN6537-L-Icon D-K-extern-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 58,40 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC150 A 0 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
6 mm
Shank diameter
d1
6 mm
Flute length
l2
44 mm
Shank length
l5
36 mm
Drilling depth
Lc
35 mm
Overall length
l1
82 mm
Tool designation
Designation
DC150-05-06.000A0-WJ30TA
