Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 5xDc DC150 Perform DC150-05-A1, cylindrical shank 4031132366876

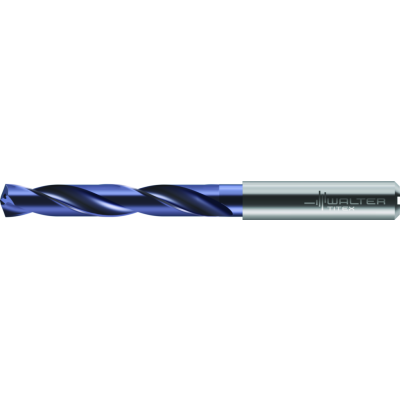

Solid carbide drills with coolant-through

DC150-05-03.000A1-WJ30RE

EAN-code: 4031132366876
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-DIN6537-L-Icon D-IK-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 68,30 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T-DR-DC150-A-1-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
3 mm
Shank diameter
d1
6 mm
Flute length
l2
28 mm
Shank length
l5
36 mm
Drilling depth
Lc
23 mm
Overall length
l1
66 mm
Tool designation
Designation
DC150-05-03.000A1-WJ30RE
