Products Cutting tools Holemaking Solid drilling Solid carbide drills Drills without internal cooling 3xDc DC160 Advance DC160-03-F0, DIN 6535 HE + HB 4031132402994

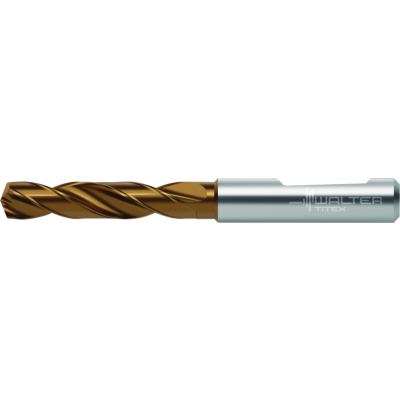

Solid carbide twist drills

DC160-03-04.000F0-WJ30ET

EAN-code: 4031132402994
D-drilling-blind-hole-solid-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-3xDc-Icon D-DIN6537-K-Icon D-K-extern-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 78,10 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC160 F 0 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
4 mm
Shank diameter
d1
6 mm
Flute length
l2
24 mm
Shank length
l5
36 mm
Drilling depth
Lc
17 mm
Overall length
l1
66 mm
Tool designation
Designation
DC160-03-04.000F0-WJ30ET
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
