Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 5xDc DC165 Advance 4031132440408

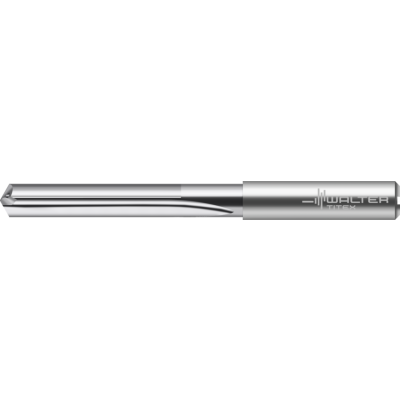

Solid carbide drills with coolant-through, straight groove

DC165-05-14.000A1-WJ30UU NEW 2022

EAN-code: 4031132440408
D-drilling-blind-hole-solid-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-IK-Icon D-Spitzenw-120-Icon
P
M
K
N
S
H
O
VAT 0% 249,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T-DR-DC165-05-A1 -D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
14 mm
Shank diameter
d1
14 mm
Flute length
l2
73 mm
Shank length
l5
45 mm
Drilling depth
Lc
45 mm
Overall length
l1
124 mm
Tool designation
Designation
DC165-05-14.000A1-WJ30UU
