Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 30xDc DC170 Supreme 4031132391793
Solid carbide drills with coolant-through

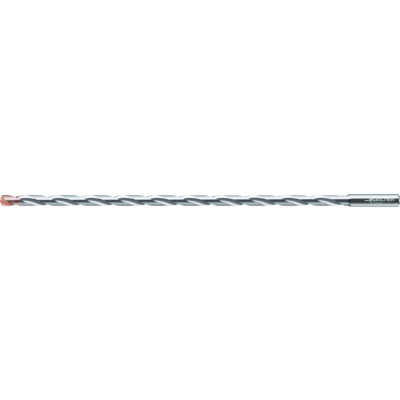

DC170-30-10.200A1-WJ30EJ

EAN-code: 4031132391793
D-drilling-blind-hole-solid-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-30xDc-Icon D-IK-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 999,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T-DR-DC170-A1-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10,2 mm
Shank diameter
d1
12 mm
Flute length
l2
352 mm
Shank length
l5
45 mm
Cutting edge length
Lc
335 mm
Overall length
l1
401 mm
Tool designation
Designation
DC170-30-10.200A1-WJ30EJ
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
