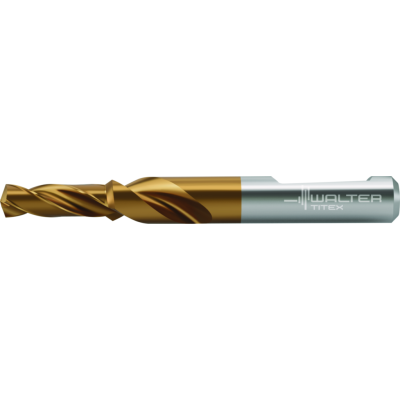

Solid carbide twist drills

DC260-03-14.500F0-WJ30ET

EAN-code: 4031132420745
D-chamferdrilling-blind-hole-Icon D-chamferdrilling-thru-hole-Icon D-chamferdrilling-thru-hole-stack-Icon
D-3xDc-Icon D-K-extern-Icon D-Spitzenw-140-Icon D-Stufenw-90-Icon
Step length in accordance with DIN 8378 For threaded core hole drilling
P
M
K
N
S
H
O
VAT 0% 497,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge diameter
Dc
14,5 mm
Cutting edge diameter
d10
18 mm
Shank diameter
d1
18 mm
For threads
M 16 X 1,5
Flute length
l2
73 mm
Shank length
l5
48 mm
Overall length
l1
123 mm
Tool designation
Designation
DC260-03-14.500F0-WJ30ET
Step length
Lc
39 mm
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
