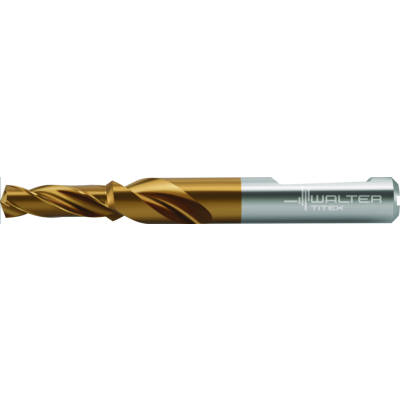

Solid carbide drills with coolant-through

DC260-03-06.800F1-WJ30ET

EAN-code: 4031132420530
D-chamferdrilling-blind-hole-Icon D-chamferdrilling-thru-hole-Icon D-chamferdrilling-thru-hole-stack-Icon
D-3xDc-Icon D-IK-Icon D-Spitzenw-140-Icon D-Stufenw-90-Icon
Step length in accordance with DIN 8378 For threaded core hole drilling
P
M
K
N
S
H
O
VAT 0% 186,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC260 03 F1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
6,8 mm
Cutting edge diameter
d10
1 mm
Shank diameter
d1
10 mm
For threads
M 8
Flute length
l2
47 mm
Shank length
l5
4 mm
Overall length
l1
89 mm
Tool designation
Designation
DC260-03-06.800F1-WJ30ET
Step length
Lc
21 mm
