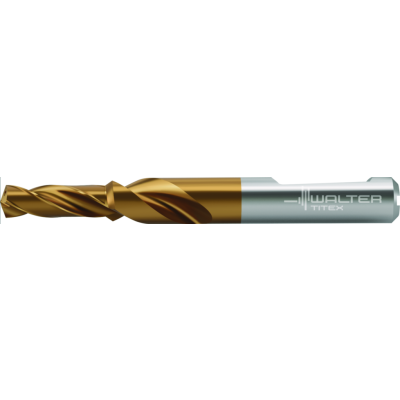

Solid carbide drills with coolant-through

DC260-03-10.200F1-WJ30ET

EAN-code: 4031132420639
D-chamferdrilling-blind-hole-Icon D-chamferdrilling-thru-hole-Icon D-chamferdrilling-thru-hole-stack-Icon
D-3xDc-Icon D-IK-Icon D-Spitzenw-140-Icon D-Stufenw-90-Icon
Step length in accordance with DIN 8378 For threaded core hole drilling
P
M
K
N
S
H
O
VAT 0% 346,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC260 03 F1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10,2 mm
Cutting edge diameter
d10
14 mm
Shank diameter
d1
14 mm
For threads
M 12
Flute length
l2
60 mm
Shank length
l5
45 mm
Overall length
l1
107 mm
Tool designation
Designation
DC260-03-10.200F1-WJ30ET
Step length
Lc
3 mm
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
