Products Cutting tools Turning ISO turning Walter Capto™ boring bars Negative basic shape CN.. DCLN – Rigid clamping DCLNR 0590732967

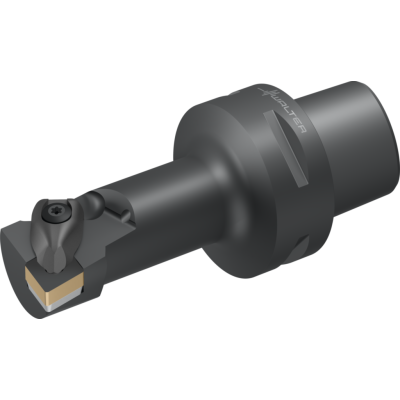

Boring bar – Rigid clamping

C6-DCLNR-17100-12

EAN-code: 0590732967
T-In-xCLx-Icon
T-WSP-CNMG-Icon T-WSP-CNMM-Icon
Walter CaptoTM
VAT 0% 418,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DCLN-CAPTO-IN-D-01
Enlarge
Description Symbol Value
Connection size code
d1
C6
Body diameter
d2
25 mm
Connection diameter
d1
C6 mm
Minimum diameter
Dmin
32 mm
Orthogonal rake angle
γ
-6 °
Inclination angle
λs
-12 °
Functional length
l16
72 mm
Projection length
l4
1 mm
Tool designation
Designation
C6-DCLNR-17100-12
Insert seat size
12
Possible indexable inserts
Type
CN .. 1204 ..
Functional width
f
17 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
CNGA-TM-4-WTZ-P-01
CNGA_TM-4
CBN – Negative rhombic 80°
Show variations
CNMM HU3 TTG2 P 01
CNMM-HU3
Negative rhombic 80°
Show variations
CNMM HU7 TTG2 P 01
CNMM-HU7
Negative rhombic 80°
Show variations
W T CNGG MN3 ANTHRA HIPIMS P 01
CNGG-MN3
Negative rhombic 80°
Show variations
W T CNGA SMS CER CHAMP P 01
CNGA-SMS
Ceramic – Negative rhombic 80°
Show variations
W T CNGA SM MWS CER CHAMP WIPER P 01
CNGA-SM-MWS
Ceramic – Negative rhombic 80°
Show variations
W-T-CNMG-MW5-TTG3-WIPER-P-01
CNMG-MW5
Negative rhombic 80°
Show variations
W-T-CNMG-FW5-TTG3-WIPER-P-01
CNMG-FW5
Negative rhombic 80°
Show variations
W-T-CNMG-MU5-TTG3-P-01
CNMG-MU5
Negative rhombic 80°
Show variations
W-T-CNGA-TM-2-CBN-P-01
CNGA_TS-2
CBN – Negative rhombic 80°
Show variations
CNMM-HU5-TTG2-P-01
CNMM-HU5
Negative rhombic 80°
Show variations
W-T-CNMG-RP7-TTG3-P-01
CNMG-RP7
Negative rhombic 80°
Show variations
W-T-CNMG-RP5-TTG3-P-01
CNMG-RP5
Negative rhombic 80°
Show variations
W-T-CNMG-RM5-TTG3-P-01
CNMG-RM5
Negative rhombic 80°
Show variations
W T CNMG NRT SILVER P 01
CNMG-NRT
Negative rhombic 80°
Show variations
W T CNMG NRS SILVER P 01
CNMG-NRS
Negative rhombic 80°
Show variations
W T CNMG NMT SILVER P 01
CNMG-NMT
Negative rhombic 80°
Show variations
W T CNMG NMS SILVER P 01
CNMG-NMS
Negative rhombic 80°
Show variations
W T CNMG NFT SILVER P 01
CNMG-NFT
Negative rhombic 80°
Show variations
W-T-CNMG-MS3-TTG3-P-01
CNMG-MS3
Negative rhombic 80°
Show variations
W-T-CNMG-MP5-TTG3-P-01
CNMG-MP5
Negative rhombic 80°
Show variations
CNMG-MM5-SILVER-P-01
CNMG-MM5
Negative rhombic 80°
Show variations
W T CNMG FM5 SILVER P 01
CNMG-FM5
Negative rhombic 80°
Show variations
W T CNMG MK5 SILVER P 01
CNMG-MK5
Negative rhombic 80°
Show variations
W-T-CNMG-MP3-TTG3-P-01
CNMG-MP3
Negative rhombic 80°
Show variations
W-T-CNMG-FP5-TTG3-P-01
CNMG-FP5
Negative rhombic 80°
Show variations
W T CNMA RK7 SILVER P 01
CNMA-RK7
Negative rhombic 80°
Show variations
W T CNMA RK5 SILVER P 01
CNMA-RK5
Negative rhombic 80°
Show variations
W T CNMG NFT GREY P 01
CNGG-NFT
Negative rhombic 80°
Show variations
W T CNGG MS3 ANTHRA P 01
CNGG-MS3
Negative rhombic 80°
Show variations
W T CNGA GREY P 01
CNGA-C
Ceramic – Negative rhombic 80°
Show variations
CNGA-TM-M2-WTZ-CHIPBREAKER-P-01
CNGA_TM-M2
CBN – Negative rhombic 80°
Show variations
CNGA-TM-MW2-WTZ-WIPER-P-01
CNGA_TM-MW2
CBN – Negative rhombic 80°
Show variations
CNGA-TM-2-WTZ-P-01
CNGA_TM-2
CBN – Negative rhombic 80°
Show variations
W T CNGA TM 2 CBN P 01
CNGA_EM-2
CBN – Negative rhombic 80°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W A 391 02 CAPTO P 01
391.02-KONISCH-CAPTO
Reduction adaptor
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W-A-2060VDI-CAPTO-P-02
R/LC20 GERADE-VDI
VDI DIN 69880 clamping units
Show variations
W A 2060VDI CAPTO P 01
R/LC20 ABGEWINKELT-VDI
VDI DIN 69880 clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
