Products Cutting tools Turning ISO turning Capto™ -turning toolholders Negative basic shape DN.. Approach angle 93° DDJN – Rigid clamping with prec. cool. DDJNL-P 0916798967
Turning tools – Rigid clamping

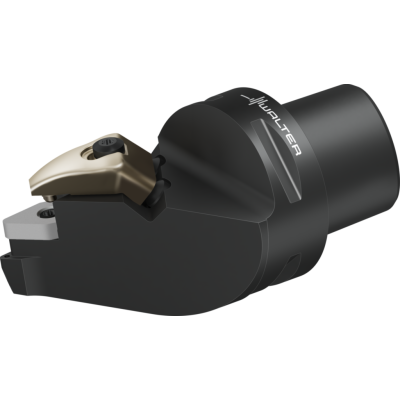

C5-DDJNL-35060-15-P

EAN-code: 0916798967
T-Ex-xDJx-Icon
PointCool-Icon T-WSP-DNMG-Icon
Walter CaptoTM Precision cooling
VAT 0% 423,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DDJNL-P-CAPTO-EX-D-01
Enlarge
Description Symbol Value
Connection size code
d1
C5
Minimum diameter
Dmin
500 mm
Minimum diameter
Dmin2
600 mm
Orthogonal rake angle
γ
-6 °
Inclination angle
λs
-7 °
Functional length
l4
6 mm
Tool designation
Designation
C5-DDJNL-35060-15-P
Insert seat size
15
Possible indexable inserts
Type
DN .. 1506 ..
Functional width
f
35 mm
