Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape DN.. Approach angle 93° DDJN – Rigid clamping with prec. cool. DDJNL-P 0793708912

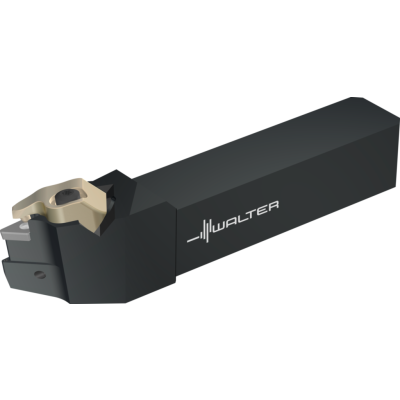

Shank tool – Rigid clamping

DDJNL2020X11-P

EAN-code: 0793708912
T-Ex-xDJx-Icon
PointCool-Icon T-WSP-DNMG-Icon
Precision cooling
VAT 0% 242,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DDJNL-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
20 mm
Orthogonal rake angle
γ
-6 °
Shank height
h = h1
20 mm
Inclination angle
λs
-7 °
Overall length
l1
125 mm
Projection length
l4
48,5 mm
Tool designation
Designation
DDJNL2020X11-P
Insert seat size
11
Possible indexable inserts
Type
DN .. 1104 ..
Functional width
f
25 mm
