Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape DN.. Approach angle 93° DDJN – Rigid clamping with prec. cool. DDJNL-P 0953020912

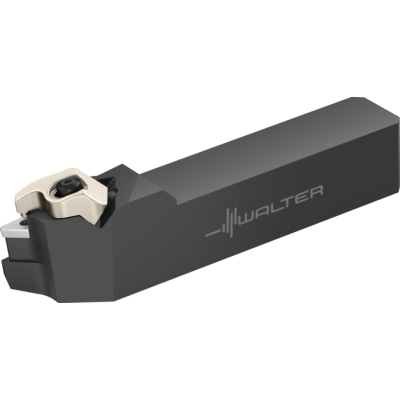

Shank tool – Rigid clamping

DDJNL2525X11-P NEW 2019

EAN-code: 0953020912
T-Ex-xDJx-Icon
PointCool-Icon T-WSP-DNMG-Icon
Precision cooling
VAT 0% 255,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DDJNL-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Orthogonal rake angle
γ
-6 °
Shank height
h = h1
25 mm
Inclination angle
λs
-7 °
Overall length
l1
14 mm
Projection length
l4
48,5 mm
Tool designation
Designation
DDJNL2525X11-P
Insert seat size
11
Possible indexable inserts
Type
DN .. 1104 ..
Functional width
f
32 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
W T DNGG MN3 ANTHRA HIPIMS P 01
DNGG-MN3
Negative rhombic 55°
Show variations
W-T-DNMG-MW5-TTG3-WIPER-P-01
DNMG-MW5
Negative rhombic 55°
Show variations
W-T-DNMG-FW5-TTG3-WIPER-P-01
DNMG-FW5
Negative rhombic 55°
Show variations
W-T-DNMG-MU5-TTG3-P-01
DNMG-MU5
Negative rhombic 55°
Show variations
W-T-DNMG-RP5-TTG3-P-01
DNMG-RP5
Negative rhombic 55°
Show variations
W T DNMG RM5 SILVER P 01
DNMG-RM5
Negative rhombic 55°
Show variations
W-T-DNMG-MS3-TTG3-P-01
DNMG-MS3
Negative rhombic 55°
Show variations
W T DNMG NMT SILVER P 01
DNMG-NMT
Negative rhombic 55°
Show variations
W-T-DNMG-MP5-TTG3-P-01
DNMG-MP5
Negative rhombic 55°
Show variations
W-T-DNMG-MP3-TTG3-P-01
DNMG-MP3
Negative rhombic 55°
Show variations
DNMG-NM4-TTG2-P-01
DNMG-MM5
Negative rhombic 55°
Show variations
W T DNMG MK5 SILVER P 01
DNMG-MK5
Negative rhombic 55°
Show variations
W T DNMG FM5 SILVER P 01
DNMG-FM5
Negative rhombic 55°
Show variations
W-T-DNMG-FP5-TTG3-P-01
DNMG-FP5
Negative rhombic 55°
Show variations
W T DNMA RK5 SILVER P 01
DNMA-RK5
Negative rhombic 55°
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 DO25 P P 01
A2120-DO-P
Doosan adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
