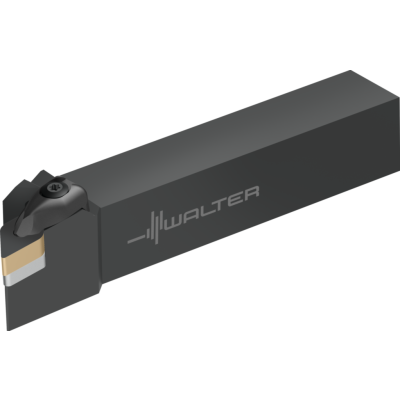

Shank tool – Rigid clamping
DDJNR2020K15
EAN-code: 0442253913
VAT 0%
102,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
b
20 mm
Orthogonal rake angle
γ
-6 °
Shank height
h = h1
20 mm
Inclination angle
λs
-7 °
Overall length
l1
125 mm
Projection length
l4
39,4 mm
Tool designation
Designation
DDJNR2020K15
Insert seat size
Plate seat size
15
Possible indexable inserts
Type
DN .. 1506 ..
Functional width
f
25 mm
