Products Cutting tools Turning ISO turning Boring bars Negative basic shape DN.. Approach angle 62.5° DDXN – Rigid clamping DDXNR 0568404912

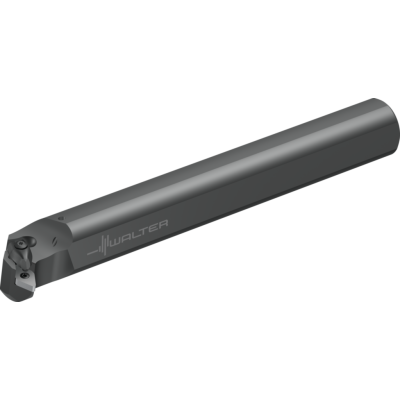

Boring bar – Rigid clamping

A40T-DDXNR15 NEW 2019

EAN-code: 0568404912
T-In-SDXC-Icon
T-WSP-DNMG-Icon T-WSP-DNMM-Icon
A = Steel version with internal cooling Additional coolant hole for blind hole machining
VAT 0% 321,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DDXN-ISO-INNEN-D-01
Enlarge
Description Symbol Value
Connection diameter
d1
40 mm
Minimum diameter
Dmin
5 mm
Orthogonal rake angle
γ
-6 °
Shank height
h
37 mm
Inclination angle
λs
-11 °
Functional length
l1
3 mm
Overall length
l20
308,5 mm
Tool designation
Designation
A40T-DDXNR15
Insert seat size
15
Possible indexable inserts
Type
DN .. 1506 ..
Functional width
f
27 mm
