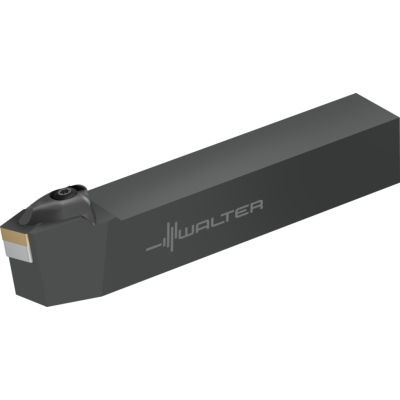

Shank tool – Rigid clamping

DSBNL4040S19

EAN-code: 0454988913
T-Ex-xSBx-Icon
T-WSP-SNMG-Icon T-WSP-SNMM-Icon
VAT 0% 188,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
B
40 mm
Orthogonal rake angle
γ
-6 °
Shank height
h = h1
40 mm
Inclination angle
λs
-6 °
Overall length
l1
25 mm
Projection length
l4
46,5 mm
Tool designation
Designation
DSBNL4040S19
Insert seat size
19
Possible indexable inserts
Type
SN .. 1906 ..
Functional width
f
35 mm
Compatible products
Products
Accessories
Assembly parts
SNMM HU7 TTG2 P 01
SNMM-HU7
Negative square
Show variations
SNMM HU3 TTG2 P 01
SNMM-HU3
Negative square
Show variations
SNMM-HU5-TTG2-P-01
SNMM-HU5
Negative square
Show variations
W T SNMG NRT SILVER P 01
SNMG-NRT
Negative square
Show variations
W-T-SNMG-RP7-TTG3-P-01
SNMG-RP7
Negative square
Show variations
W-T-SNMG-RP5-TTG3-P-01
SNMG-RP5
Negative square
Show variations
W T SNMG RM5 SILVER P 01
SNMG-RM5
Negative square
Show variations
W T SNMG NRS SILVER P 01
SNMG-NRS
Negative square
Show variations
W T SNMG MK5 SILVER P 01
SNMG-MK5
Negative square
Show variations
W T SNMA RK7 SILVER P 01
SNMA-RK7
Negative square
Show variations
W T SNMA RK5 SILVER P 01
SNMA-RK5
Negative square
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
