Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape SN.. Approach angle 45° DSSN – Rigid clamping with prec. cool. DSSNL-P 0911300912

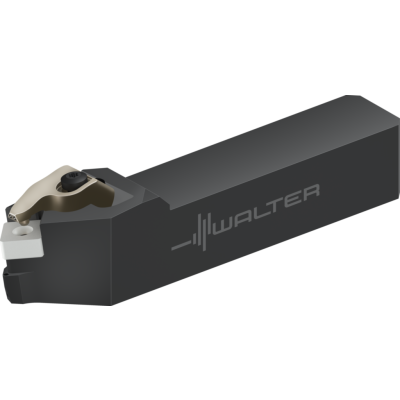

Shank tool – Rigid clamping

DSSNL2525X12-P

EAN-code: 0911300912
T-Ex-xSSx-Icon
PointCool-Icon T-WSP-SNMG-Icon
Precision cooling
VAT 0% 255,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DSSNL-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Orthogonal rake angle
γ
-8 °
Shank height
h = h1
25 mm
Inclination angle
λs
0 °
Functional length
l1
130 mm
Overall length
l20
138,7 mm
Projection length
l4
48 mm
Tool designation
Designation
DSSNL2525X12-P
Insert seat size
12
Possible indexable inserts
Type
SN .. 1204 ..
Functional width
f1
23,7 mm
Functional width
f
32 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
SNMM HU3 TTG2 P 01
SNMM-HU3
Negative square
Show variations
W T SNGA SMS CER CHAMP P 01
SNGA-SMS
Ceramic – Negative square
Show variations
W-T-SNMG-MU5-TTG3-P-01
SNMG-MU5
Negative square
Show variations
W T SNMG NMS SILVER P 01
SNMG-NMS
Negative square
Show variations
W-T-SNGA-TM-4-CBN-P-01
SNGA_TS-4
CBN – Negative square
Show variations
W T SNMG NRT SILVER P 01
SNMG-NRT
Negative square
Show variations
W-T-SNMG-RP7-TTG3-P-01
SNMG-RP7
Negative square
Show variations
W-T-SNMG-RP5-TTG3-P-01
SNMG-RP5
Negative square
Show variations
W T SNMG RM5 SILVER P 01
SNMG-RM5
Negative square
Show variations
W T SNMG NRS SILVER P 01
SNMG-NRS
Negative square
Show variations
W T SNMG FM5 SILVER P 01
SNMG-FM5
Negative square
Show variations
W T SNMG MM5 SILVER P 01
SNMG-MM5
Negative square
Show variations
W-T-SNMG-MP5-TTG3-P-01
SNMG-MP5
Negative square
Show variations
W-T-SNMG-MP3-TTG3-P-01
SNMG-MP3
Negative square
Show variations
W T SNMG MK5 SILVER P 01
SNMG-MK5
Negative square
Show variations
W-T-SNMG-FP5-TTG3-P-01
SNMG-FP5
Negative square
Show variations
W T SNMA RK7 SILVER P 01
SNMA-RK7
Negative square
Show variations
W T SNMA RK5 SILVER P 01
SNMA-RK5
Negative square
Show variations
W T SNGA GREY P 01
SNGA-C
Ceramic – Negative square
Show variations
W-T-SNGA-TM-4-CBN-P-01
SNGA_TM-4
CBN – Negative square
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 DO25 P P 01
A2120-DO-P
Doosan adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
