Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape VB.. /VC.. 93° approach angle DVJB – Rigid clamping with prec. cool. DVJBL-P 0838475912

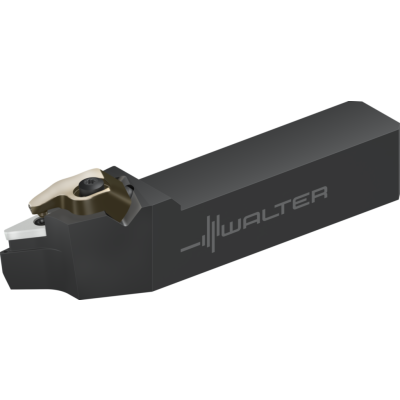

Shank tool – Rigid clamping

DVJBL2525X16-P

EAN-code: 0838475912
T-Ex-PVJB-Icon
PointCool-Icon T-WSP-VB-Icon T-WSP-VC-Icon
Precision cooling
VAT 0% 307,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DVJBL-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Orthogonal rake angle
γ
-2 °
Shank height
h = h1
25 mm
Inclination angle
λs
-7 °
Overall length
l1
140 mm
Projection length
l4
48,5 mm
Tool designation
Designation
DVJBL2525X16-P
Insert seat size
16
Possible indexable inserts
Type
VB .. 1604 ..
Functional width
f
32 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
VCGT-R-FX4-ANTHRA-P-01
VCGT-R-FX4
Positive rhombic 35°
Show variations
VCGT-L-FX4-ANTHRA-P-01
VCGT-L-FX4
Positive rhombic 35°
Show variations
VBMT MP6 TTG2 P 01
VBMT-MP6
Positive rhombic 35°
Show variations
W T VCMT MM4 SILVER P 01
VCMT-MM4
Positive rhombic 35°
Show variations
VCMT-MP4-TTG2-P-01
VCMT-MP4
Positive rhombic 35°
Show variations
W T VCGT FP2 CU P 01
VCGT-FP2
Positive rhombic 35°
Show variations
W T VCMW RK6 SILVER P 01
VCMW-RK6
Positive rhombic 35°
Show variations
VCMT-RP4-TTG2-P-01
VCMT-RP4
Positive rhombic 35°
Show variations
W T VCMT RM4 SILVER P 01
VCMT-RM4
Positive rhombic 35°
Show variations
W T VCMT RK4 SILVER P 01
VCMT-RK4
Positive rhombic 35°
Show variations
VCMT-FP4-TTG2-P-01
VCMT-FP4
Positive rhombic 35°
Show variations
W T VCMT FM4 SILVER P 01
VCMT-FM4
Positive rhombic 35°
Show variations
VCGW-TM-2-WTZ-P-01
VCGW_TS-2
CBN – Positive rhombic 35°
Show variations
VCGW-TM-2-CBN-P-01
VCGW_TM-2
CBN – Positive rhombic 35°
Show variations
W T VCGW1 PCD P 01
VCGW_FS-1
PCD – Positive rhombic 35°
Show variations
VCGW-TM-2-CBN-P-01
VCGW_EM-2
CBN – Positive rhombic 35°
Show variations
W T VCGT 1 PCD P 01
VCGT_FS-1
PCD – Positive rhombic 35°
Show variations
W-T-VCGT-MM4-SILVER-P-01
VCGT-MM4
Positive rhombic 35°
Show variations
W-T-VCGT-MN2-ANTHRA-POL-P-02-1
VCGT-MN2
Positive rhombic 35°
Show variations
W T VCGT FM2 SILVER P 01
VCGT-FM2
Positive rhombic 35°
Show variations
W-T-VCGT-FN2-ANTHRA-POL-P-02-1
VCGT-FN2
Positive rhombic 35°
Show variations
VBMT-MP4-TTG2-P-01
VBMT-MP4
Positive rhombic 35°
Show variations
W-T-VBMT-MM4-SILVER-P-01
VBMT-MM4
Positive rhombic 35°
Show variations
W T VBMT MK4 SILVER P 01
VBMT-MK4
Positive rhombic 35°
Show variations
VBMT-FP6-TTG2-P-01
VBMT-FP6
Positive rhombic 35°
Show variations
W T VBMT FM6 SILVER P 01
VBMT-FM6
Positive rhombic 35°
Show variations
W T VBMT FK6 SILVER P 01
VBMT-FK6
Positive rhombic 35°
Show variations
VCGW-TM-2-CBN-P-01
VBGW_TS-2
CBN – Positive rhombic 35°
Show variations
VCGW-TM-2-WTZ-P-01
VBGW_TM-2
CBN – Positive rhombic 35°
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 DO25 P P 01
A2120-DO-P
Doosan adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
