Products Cutting tools Turning ISO turning Capto™ -turning toolholders Negative basic shape VN.. DVJN – Rigid clamping with prec. cool. DVJNL-P 0928246967
Turning tools - Rigid clamping

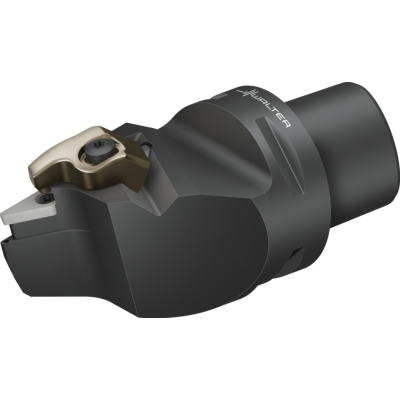

C6-DVJNL-45065-16-P

EAN-code: 0928246967
T-Ex-DVJN-Icon
PointCool-Icon T-WSP-VNMM-Icon
Walter CaptoTM Precision cooling
VAT 0% 486,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DVJNL-P-CAPTO-EX-D-01
Enlarge
Description Symbol Value
Connection size code
d1
C6
Minimum diameter
Dmin
700 mm
Minimum diameter
Dmin2
150 mm
Orthogonal rake angle
γ
-4 °
Inclination angle
λs
-13 °
Functional length
l4
65 mm
Tool designation
Designation
C6-DVJNL-45065-16-P
Insert seat size
16
Possible indexable inserts
Type
VN .. 1604 ..
Functional width
f
45 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
W T VNGG MN3 ANTHRA HIPIMS P 01
VNGG-MN3
Negative rhombic 35°
Show variations
W T VNGA SMS CER CHAMP P 01
VNGA-SMS
Ceramic – Negative rhombic 35°
Show variations
W-T-VNGA-TM-2-CBN-P-01
VNGA_TS-2
CBN – Negative rhombic 35°
Show variations
W T VNMG NMS SILVER P 01
VNMG-NMS
Negative rhombic 35°
Show variations
W T VNMG NFT SILVER P 01
VNMG-NFT
Negative rhombic 35°
Show variations
W T VNMG MS3 ANTHRA P 01
VNMG-MS3
Negative rhombic 35°
Show variations
W-T-VNMG-MP5-TTG3-P-01
VNMG-MP5
Negative rhombic 35°
Show variations
W-T-VNMG-MP3-TTG3-P-01
VNMG-MP3
Negative rhombic 35°
Show variations
W T VNMG MM5 SILVER P 01
VNMG-MM5
Negative rhombic 35°
Show variations
W T VNMG MK5 SILVER P 01
VNMG-MK5
Negative rhombic 35°
Show variations
W-T-VNMG-FP5-TTG3-P-01
VNMG-FP5
Negative rhombic 35°
Show variations
W-T-VNMG-FM5-SILVER-P-01
VNMG-FM5
Negative rhombic 35°
Show variations
W T VNMA RK5 SILVER P 01
VNMA-RK5
Negative rhombic 35°
Show variations
W T VNMG NFT GREY P 01
VNGG-NFT
Negative rhombic 35°
Show variations
W T VNGG MS3 ANTHRA P 01
VNGG-MS3
Negative rhombic 35°
Show variations
VNGA-TM-2-CBNBR-P-01
VNGA_TM-2
CBN – Negative rhombic 35°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W A 391 02 CAPTO P 01
391.02-KONISCH-CAPTO
Reduction adaptor
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W-A-2060VDI-CAPTO-P-02
R/LC20 GERADE-VDI
VDI DIN 69880 clamping units
Show variations
W A 2060VDI CAPTO P 01
R/LC20 ABGEWINKELT-VDI
VDI DIN 69880 clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
