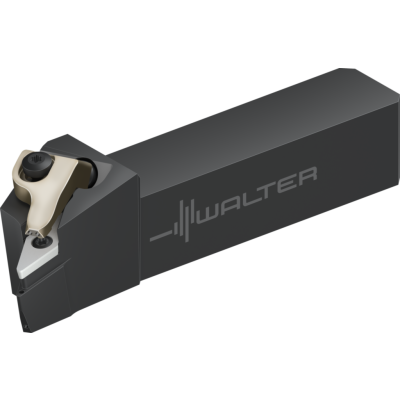

Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape VN.. Approach angle 93° DVJN – Rigid clamping with prec. cool. DVJNR-P 0838472912
Shank tool – Rigid clamping

DVJNR2525X16-P

EAN-code: 0838472912
T-Ex-DVJN-Icon
PointCool-Icon T-WSP-VNMG-Icon
Precision cooling
VAT 0% 307,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DVJN-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Orthogonal rake angle
γ
-4 °
Shank height
h = h1
25 mm
Inclination angle
λs
-13 °
Overall length
l1
14 mm
Projection length
l4
48 mm
Tool designation
Designation
DVJNR2525X16-P
Insert seat size
16
Possible indexable inserts
Type
VN .. 1604 ..
Functional width
f
32 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
W T VNGG MN3 ANTHRA HIPIMS P 01
VNGG-MN3
Negative rhombic 35°
Show variations
W T VNGA SMS CER CHAMP P 01
VNGA-SMS
Ceramic – Negative rhombic 35°
Show variations
W-T-VNGA-TM-2-CBN-P-01
VNGA_TS-2
CBN – Negative rhombic 35°
Show variations
W T VNMG NMS SILVER P 01
VNMG-NMS
Negative rhombic 35°
Show variations
W T VNMG NFT SILVER P 01
VNMG-NFT
Negative rhombic 35°
Show variations
W T VNMG MS3 ANTHRA P 01
VNMG-MS3
Negative rhombic 35°
Show variations
W-T-VNMG-MP5-TTG3-P-01
VNMG-MP5
Negative rhombic 35°
Show variations
W-T-VNMG-MP3-TTG3-P-01
VNMG-MP3
Negative rhombic 35°
Show variations
W T VNMG MM5 SILVER P 01
VNMG-MM5
Negative rhombic 35°
Show variations
W T VNMG MK5 SILVER P 01
VNMG-MK5
Negative rhombic 35°
Show variations
W-T-VNMG-FP5-TTG3-P-01
VNMG-FP5
Negative rhombic 35°
Show variations
W-T-VNMG-FM5-SILVER-P-01
VNMG-FM5
Negative rhombic 35°
Show variations
W T VNMA RK5 SILVER P 01
VNMA-RK5
Negative rhombic 35°
Show variations
W T VNMG NFT GREY P 01
VNGG-NFT
Negative rhombic 35°
Show variations
W T VNGG MS3 ANTHRA P 01
VNGG-MS3
Negative rhombic 35°
Show variations
VNGA-TM-2-CBNBR-P-01
VNGA_TM-2
CBN – Negative rhombic 35°
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 DO25 P P 01
A2120-DO-P
Doosan adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
