Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape WN.. DWLN – Rigid clamping with prec. cool. DWLNL-P 0843231912

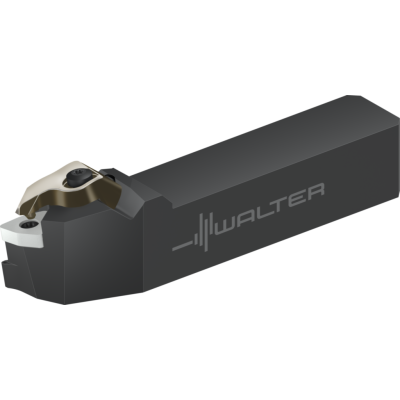

Shank tool – Rigid clamping

DWLNL2020X08-P

EAN-code: 0843231912
T-Ex-xWLx-Icon
PointCool-Icon T-WSP-WNMG-Icon
Precision cooling
VAT 0% 242,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DWLNL-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
20 mm
Orthogonal rake angle
γ
-6,5 °
Shank height
h = h1
20 mm
Inclination angle
λs
-5,5 °
Overall length
l1
12 mm
Projection length
l4
43,5 mm
Tool designation
Designation
DWLNL2020X08-P
Insert seat size
8
Possible indexable inserts
Type
WN .. 0804 ..
Functional width
f
25 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
WNMM HU3 TTG2 P 01
WNMM-HU3
Negative Trigon 80°
Show variations
W T WNGG MN3 ANTHRA HIPIMS P 01
WNGG-MN3
Negative Trigon 80°
Show variations
W T WNGA SMS CER CHAMP P 01
WNGA-SMS
Ceramic – Negative Trigon 80°
Show variations
W T WNGA SM MWS CER CHAMP WIPER P 01
WNGA-SM-MWS
Ceramic – Negative Trigon 80°
Show variations
W-T-WNMG-MW5-TTG3-WIPER-P-01
WNMG-MW5
Negative Trigon 80°
Show variations
W-T-WNMG-FW5-TTG3-WIPER-P-01
WNMG-FW5
Negative Trigon 80°
Show variations
W-T-WNMG-MU5-TTG3-P-01
WNMG-MU5
Negative Trigon 80°
Show variations
W-T-WNGA-TM-3-CBN-P-01
WNGA_TS-3
CBN – Negative Trigon 80°
Show variations
W-T-WNMG-RP7-TTG3-P-01
WNMG-RP7
Negative Trigon 80°
Show variations
W T WNMG NRS SILVER P 01
WNMG-NRS
Negative Trigon 80°
Show variations
W T WNMG NMT SILVER P 01
WNMG-NMT
Negative Trigon 80°
Show variations
W-T-WNMG-MS3-TTG3-P-01
WNMG-MS3
Negative Trigon 80°
Show variations
W-T-WNMG-RP5-TTG3-P-01
WNMG-RP5
Negative Trigon 80°
Show variations
W-T-WNMG-RM5-TTG3-P-01
WNMG-RM5
Negative Trigon 80°
Show variations
W T WNMG NMS SILVER P 01
WNMG-NMS
Negative Trigon 80°
Show variations
W-T-WNMG-MP5-TTG3-P-01
WNMG-MP5
Negative Trigon 80°
Show variations
W-T-WNMG-MP3-TTG3-P-01
WNMG-MP3
Negative Trigon 80°
Show variations
WNMG-NM4-TTG2-P-01
WNMG-MM5
Negative Trigon 80°
Show variations
W T WNMG MK5 SILVER P 01
WNMG-MK5
Negative Trigon 80°
Show variations
W-T-WNMG-FP5-TTG3-P-01
WNMG-FP5
Negative Trigon 80°
Show variations
W T WNMG FM5 SILVER P 01
WNMG-FM5
Negative Trigon 80°
Show variations
W T WNMA RK7 SILVER P 01
WNMA-RK7
Negative Trigon 80°
Show variations
W T WNMA RK5 SILVER P 01
WNMA-RK5
Negative Trigon 80°
Show variations
W-T-WNGA-TM-3-CBN-P-01
WNGA_TM-3
CBN – Negative Trigon 80°
Show variations
W T WNGA GREY P 01
WNGA-C
Ceramic – Negative Trigon 80°
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W A A2120 BT45 P 01
A2120-BMT-P
BMT adaptor – DIN 69880 shank tools
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_SPRING
Spring
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
