Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape WN.. DWLN – Rigid clamping with prec. cool. DWLNR-P 0843232912

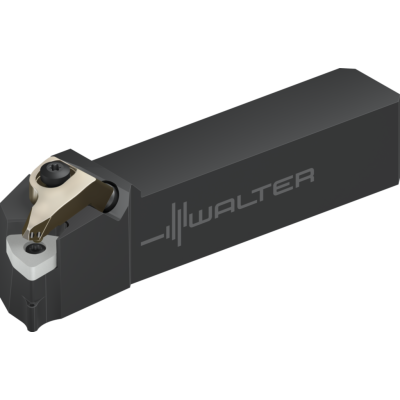

Shank tool – Rigid clamping

DWLNR2020X08-P

EAN-code: 0843232912
T-Ex-xWLx-Icon
PointCool-Icon T-WSP-WNMG-Icon
Precision cooling
VAT 0% 242,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DWLN-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
20 mm
Orthogonal rake angle
γ
-6,5 °
Shank height
h = h1
20 mm
Inclination angle
λs
-5,5 °
Overall length
l1
12 mm
Projection length
l4
43,5 mm
Tool designation
Designation
DWLNR2020X08-P
Insert seat size
8
Possible indexable inserts
Type
WN .. 0804 ..
Functional width
f
25 mm
