Products Cutting tools Milling Milling tools with indexable inserts Face milling cutters Positive indexable inserts M4003 and F2010, 45° F2010-SD12 F2010-B1-SD12, Dc= 80mm 0918179725
Face milling cutters

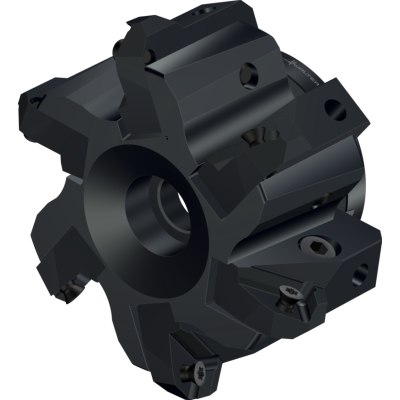

F2010.B.080.Z06.06.R758M

EAN-code: 0918179725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon
M-Anstellw-45-Icon M-Wiper-Icon M-WSP-pos-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 987,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details

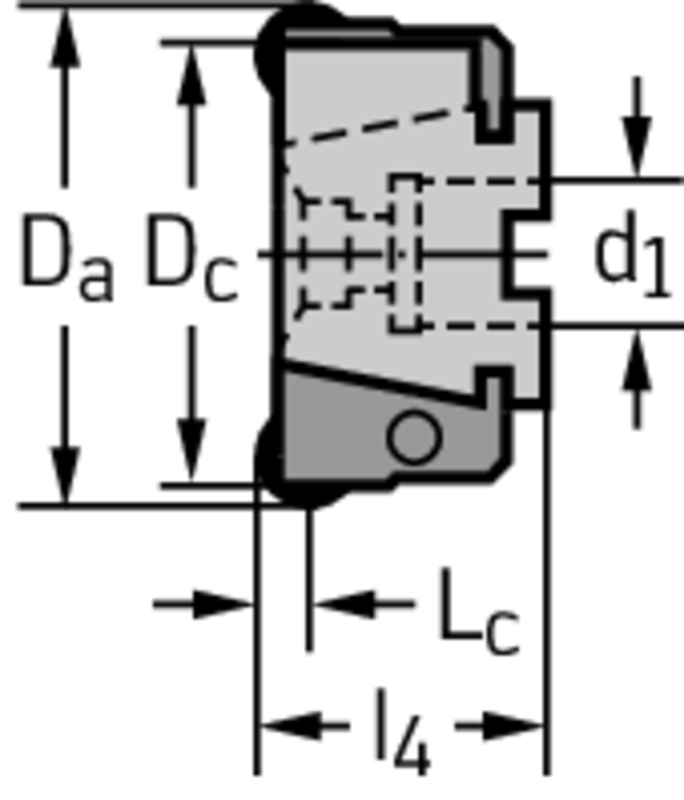

W MI F2010 B RO D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
80 mm
Cutting edge length
Lc
6 mm
Maximum cutting diameter
Da
94 mm
Functional length
l4
5 mm
Tool designation
Designation
F2010.B.080.Z06.06.R758M
Possible indexable inserts
Type
SD .. 1204AZN; SDHX1204AZR
Weight
WT
1,2 kg
Number of teeth
Z
6
Number of indexable inserts
No. of inserts
6 PCE
