Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Negative indexable inserts F4041, LNGX1307.. F2010-B-LN1307, 90° F2010-B2, Dc= 100mm - 125mm 0576718725

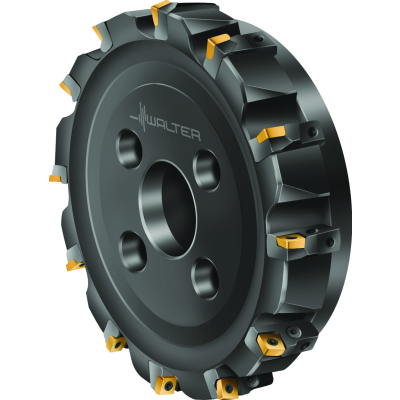

Shoulder milling cutters

F2010.B.125.Z08.13.R722M

EAN-code: 0576718725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-neg-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 1387,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
W MI F2010 B D 02
Enlarge
Description Symbol Value
Cutting edge length
Lc
13 mm
Number of indexable inserts
No. of inserts
8 PCE
Cutting edge diameter
Dc
125 mm
Maximum projection length
l4
63 mm
Tool designation
Designation
F2010.B.125.Z08.13.R722M
Possible indexable inserts
Type
LNGX1307 .. R
Weight
WT
3,5 kg
Number of teeth
Z
8
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI LNGX L88 CU P 01
LNGX-L88
Negative rhombic
Show variations
W MI LNGX L55 TTG P 01
LNGX-L55
Negative rhombic
Show variations
W A A150M NCT P 01
A150M.0
Combination adaptor
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
