Products Cutting tools Milling Milling tools with indexable inserts Face milling cutters Negative indexable inserts M3024 and F2010, 45° F2010-B-XN0705, 45° F2010-B2-XN07, Dc= 100mm - 125mm 0918240725

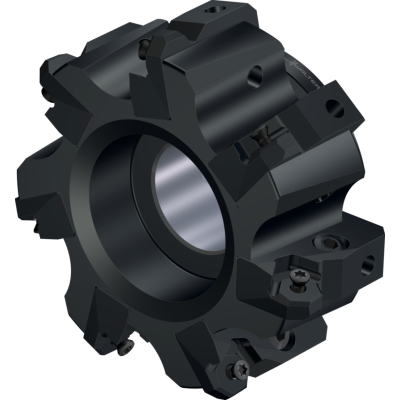

Face milling cutters

F2010.B.100.Z07.04.R759M

EAN-code: 0918240725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon
M-Anstellw-45-Icon M-Wiper-Icon M-WSP-neg-Icon
Adjustable runout 14 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 1120,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details

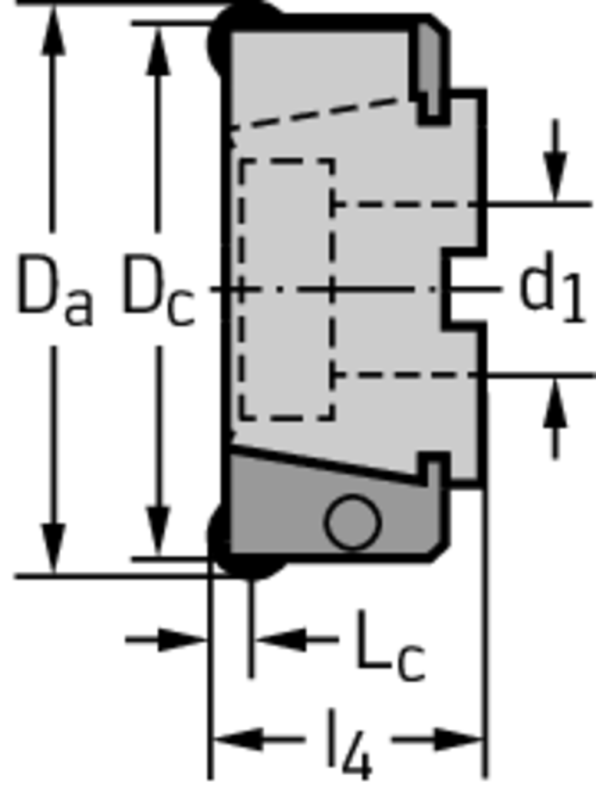

W MI F2010 B RO D 02
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
100 mm
Cutting edge length
Lc
4 mm
Maximum cutting diameter
Da
110 mm
Functional length
l4
5 mm
Tool designation
Designation
F2010.B.100.Z07.04.R759M
Possible indexable inserts
Type
XN . U0705 ..; XNGX0705ANN
Weight
WT
1,8 kg
Number of teeth
Z
7
Number of indexable inserts
No. of inserts
7 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
W-MI-XNHX-ANN-D67-ANTHRA-P-01
XNGX-ANN-F67 FUER M3024
Finishing inserts
Show variations
XNMU-ANN-F67-TTGPVD-P-01
XNMU-ANN-F67
Negative heptagonal
Show variations
XNMU-ANN-F57-TTGPVD-P-01
XNMU-ANN-F57
Negative heptagonal
Show variations
XNMU-ANN-F27-TTGPVD-P-01
XNMU-ANN-F27
Negative heptagonal
Show variations
XNMU-RADIUS-F57-TTGPVD-P-01
XNMU-RADIUS-F57
Negative heptagonal
Show variations
XNGU-ANN-F57-TTGPVD-P-01
XNGU-ANN-F57
Negative heptagonal
Show variations
W A A150M NCT P 01
A150M.0
Combination adaptor
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 SK P 01
AK155.S
DIN 69871 AD/B shell mill arbor
Show variations
W A AK155 BT P 01
AK155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A A155M HSK P 01
A155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR759M TTG P 01
KASF2010-ANDERE
Cartridge for F2010
Show variations
