Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Positive indexable inserts M5130 and F2010, AC.., BC.. F2010-BC12, 90° F2010-B3-BC12, Dc= 160-250mm 4063465280840

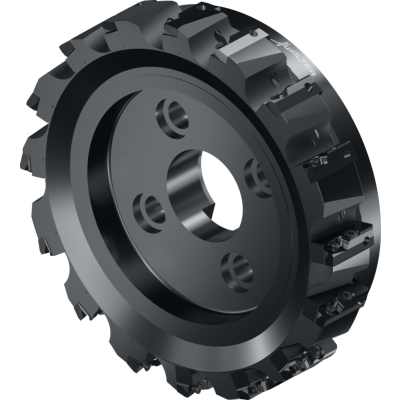

Shoulder milling cutters

F2010.B.250.Z16.11.R764M NEW 2023

EAN-code: 4063465280840
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-helical-interpolation-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert Adjustable runout
P
M
K
N
S
H
O
VAT 0% 2734,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-F2010-B-D-04
Enlarge
Description Symbol Value
Cutting edge length
Lc
11,7 mm
Number of indexable inserts
No. of inserts
16 PCE
Cutting edge diameter
Dc
25 mm
Maximum projection length
l4
63 mm
Tool designation
Designation
F2010.B.250.Z16.11.R764M
Possible indexable inserts
Type
BC .. 1204 .. R
Weight
WT
16,21 kg
Number of teeth
Z
16
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI BCHT K85 CU P 01
BCHT-K85
Positive rhombic
Show variations
BCMT-K55-TTGPVD-P-01
BCMT-K55
Positive rhombic
Show variations
BCMT-G55-TTGPVD-P-01
BCMT-G55
Positive rhombic
Show variations
W MI BCMT F55 TTG P 01
BCMT-F55
Positive rhombic
Show variations
BCGT-G55-TTGPVD-P-01
BCGT-G55
Positive rhombic
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A A155M HSK P 01
A155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
