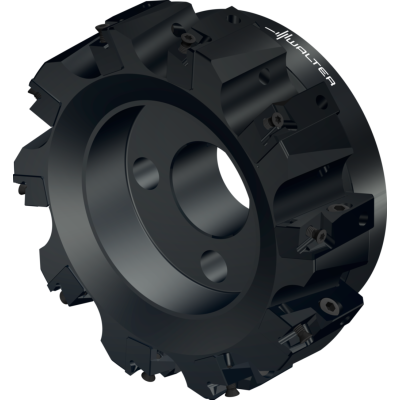

Shoulder milling cutters

F2010.B.160.Z10.12.R752M

EAN-code: 0742737725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-neg-Icon
4 cutting edges per indexable insert, tangential arrangement Adjustable runout
P
M
K
N
S
H
O
VAT 0% 1669,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
12 mm
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
16 mm
Maximum projection length
l4
63 mm
Tool designation
Designation
F2010.B.160.Z10.12.R752M
Possible indexable inserts
Type
LNH . 1306 .. R
Weight
WT
5,5 kg
Number of teeth
Z
1
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI LNMU L55T TTG P 01
LNMU-L55T
Tangential rhombic
Show variations
W MI LNHX L55T TIGER P 01
LNHX-L55T (4 SK)
Finishing inserts
Show variations
W MI LNHX PDR L55T P 01
LNHX-L55T
Finishing inserts
Show variations
W MI LNHU L65T SILVER P 01
LNHU-L65T
Tangential rhombic
Show variations
W MI LNHU ANN L55T CU P 01
LNHU-L85T
Tangential rhombic
Show variations
W MI LNHU L55T TTG P 01
LNHU-L55T
Tangential rhombic
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A A155M HSK P 01
A155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
