Shoulder milling cutters

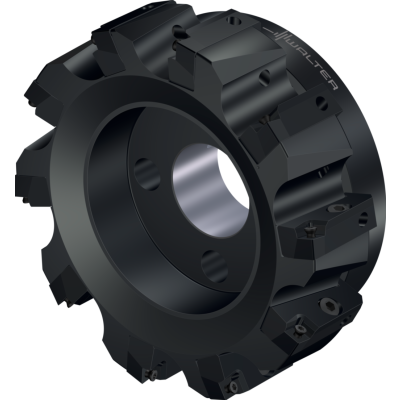

F2010.B.160.Z10.08.R756M

EAN-code: 0796544725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-8945-Icon M-WSP-pos-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 1669,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
W Mi F2010 B D 04
Enlarge
Description Symbol Value
Cutting edge length
Lc
8,4 mm
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
16 mm
Maximum projection length
l4
63 mm
Tool designation
Designation
F2010.B.160.Z10.08.R756M
Possible indexable inserts
Type
SD .. 09T3 ..; SDGT09T3PDR
Weight
WT
5,6 kg
Number of teeth
Z
1
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Positive square
Show variations
SDGT-PDR-D57-M4-TTGPVD-P-01
SDGT-PDR-D57 (M4)
Positive square
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A A155M HSK P 01
A155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
