Shoulder milling cutters

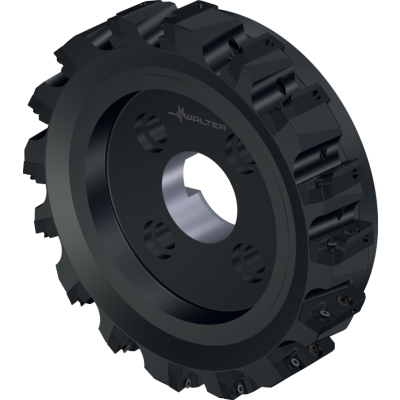

F2010.B.250.Z16.08.R757M

EAN-code: 0796556725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-8945-Icon M-WSP-pos-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 2734,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
W Mi F2010 B D 04
Enlarge
Description Symbol Value
Cutting edge length
Lc
11,6 mm
Number of indexable inserts
No. of inserts
16 PCE
Cutting edge diameter
Dc
25 mm
Maximum projection length
l4
63 mm
Tool designation
Designation
F2010.B.250.Z16.08.R757M
Possible indexable inserts
Type
SD .. 1204 ..; SDGT1204PDR
Weight
WT
14,6 kg
Number of teeth
Z
16
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Positive square
Show variations
SDGT-PDR-D57-M4-TTGPVD-P-01
SDGT-PDR-D57 (M4)
Positive square
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A A155M HSK P 01
A155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
