Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Negative indexable inserts F4041, LNGX1307.. F2010-B-LN1307, 90° F2010-B4, Dc= 315mm F2010.B.315.Z18.13.R722M
Shoulder milling cutters

F2010.B.315.Z18.13.R722M

EAN-code: 0579900725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-neg-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 3745,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details

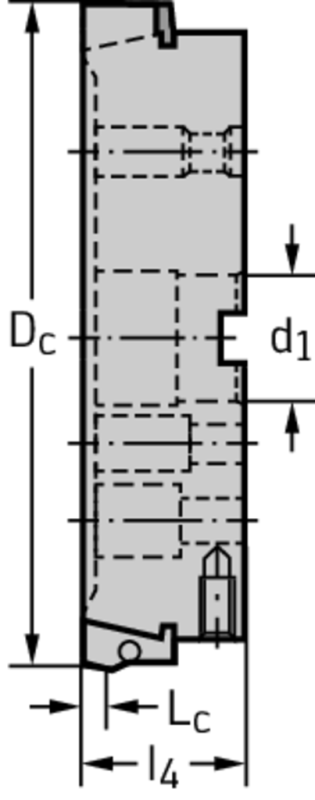

W MI F2010 B D 05
Enlarge
Description Symbol Value
Cutting edge length
Lc
13 mm
Number of indexable inserts
No. of inserts
18 PCE
Cutting edge diameter
Dc
315 mm
Maximum projection length
l4
8 mm
Tool designation
Designation
F2010.B.315.Z18.13.R722M
Possible indexable inserts
Type
LNGX1307 .. R
Number of teeth
Z
18
Compatible products
Products
Accessories
Assembly parts
W MI LNGX L88 CU P 01
LNGX-L88
Negative rhombic
Show variations
W MI LNGX L55 TTG P 01
LNGX-L55
Negative rhombic
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
