Shoulder milling cutters

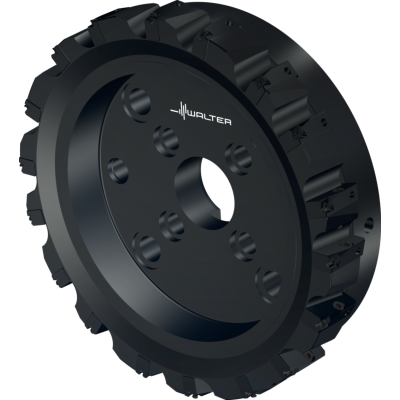

F2010.B.315.Z18.08.R751M

EAN-code: 0742733725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-neg-Icon
4 cutting edges per indexable insert, tangential arrangement Adjustable runout
P
M
K
N
S
H
O
VAT 0% 3636,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
8 mm
Number of indexable inserts
No. of inserts
18 PCE
Cutting edge diameter
Dc
315 mm
Maximum projection length
l4
8 mm
Tool designation
Designation
F2010.B.315.Z18.08.R751M
Possible indexable inserts
Type
LNH . 0904 .. R
Weight
WT
26,2 kg
Number of teeth
Z
18
Compatible products
Products
Accessories
Assembly parts
W MI LNMU L55T TTG P 01
LNMU-L55T
Tangential rhombic
Show variations
W MI LNHX PDR L55T P 01
LNHX-L55T
Finishing inserts
Show variations
W MI LNHU L65T SILVER P 01
LNHU-L65T
Tangential rhombic
Show variations
W MI LNHU ANN L55T CU P 01
LNHU-L85T
Tangential rhombic
Show variations
W MI LNHU L55T TTG P 01
LNHU-L55T
Tangential rhombic
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
