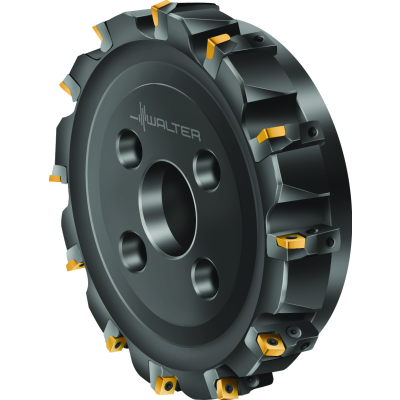

Face milling cutters

F2010.B.315.Z18.02.R681M

EAN-code: 0576747725
M-face-milling-finishing-Icon
M-Anstellw-45-Icon M-Wiper-Icon M-WSP-pos-Icon
Adjustable runout 8 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 3636,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge diameter
Dc
315 mm
Cutting edge length
Lc
2 mm
Maximum cutting diameter
Da
325 mm
Functional length
l4
8 mm
Tool designation
Designation
F2010.B.315.Z18.02.R681M
Possible indexable inserts
Type
ODHX0605ZZN
Weight
WT
27,54 kg
Number of teeth
Z
18
Number of indexable inserts
No. of inserts
18 PCE
Compatible products
Products
Accessories
Assembly parts
W MI ODHX ZZN A88 TIGER P 01
ODHX-A88
Finishing inserts
Show variations
W MI ODHX ZZN A57 TIGER P 01
ODHX-ZZN-A57
Finishing inserts
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W MI F2010 FR759M TTG P 01
KASF2010-ANDERE
Cartridge for F2010
Show variations
