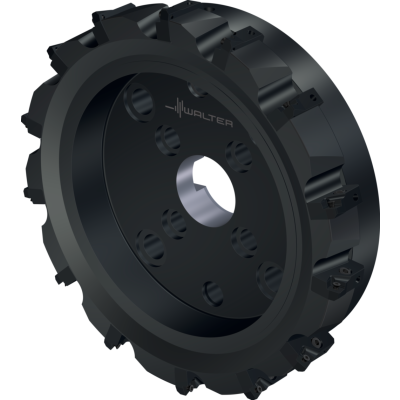

High-Feed-Fräser

F2010.B.315.Z14.08.R755M

EAN-code: 0796746725
M-face-milling-roughing-Icon M-helical-interpolation-Icon
M-Anstellw-15-Icon M-WSP-pos-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 3239,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

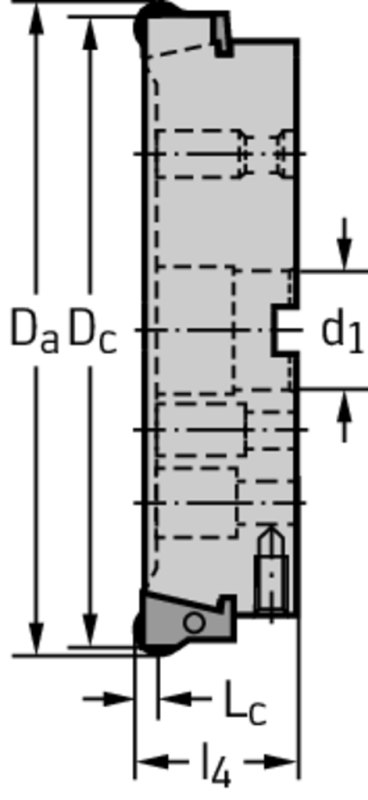

Description Symbol Value
Cutting edge length
Lc
2 mm
Cutting edge diameter
Dc
304,93 mm
Connection diameter
d1
60
Maximum cutting diameter
Da
328 mm
Functional length
l4
80 mm
Tool designation
Designation
F2010.B.315.Z14.08.R755M
Possible indexable inserts
Type
SD .. 1204 ..; SDMX1205ZDR
Weight
26,3 kg
Number of teeth
Z
14
Number of indexable inserts
Number of WSP
14
