Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Positive indexable inserts M4132 and F2010, SD.. F2010-B-SD, 89° F2010-B-SD1204, 89° F2010-B4-SD12, Dc= 315mm 0796557725
Shoulder milling cutters

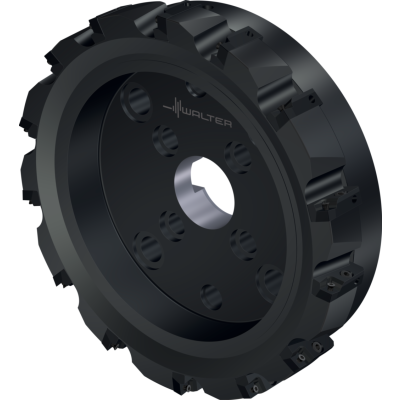

F2010.B.315.Z14.08.R757M

EAN-code: 0796557725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-8945-Icon M-WSP-pos-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 3145,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
W MI F2010 B D 05
Enlarge
Description Symbol Value
Cutting edge length
Lc
11,6 mm
Number of indexable inserts
No. of inserts
14 PCE
Cutting edge diameter
Dc
315 mm
Maximum projection length
l4
8 mm
Tool designation
Designation
F2010.B.315.Z14.08.R757M
Possible indexable inserts
Type
SD .. 1204 ..; SDGT1204PDR
Weight
WT
26,3 kg
Number of teeth
Z
14
Compatible products
Products
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Positive square
Show variations
SDGT-PDR-D57-M4-TTGPVD-P-01
SDGT-PDR-D57 (M4)
Positive square
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
