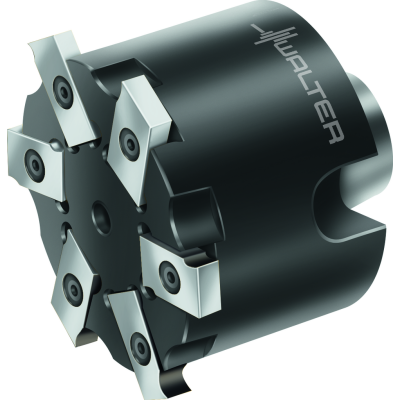

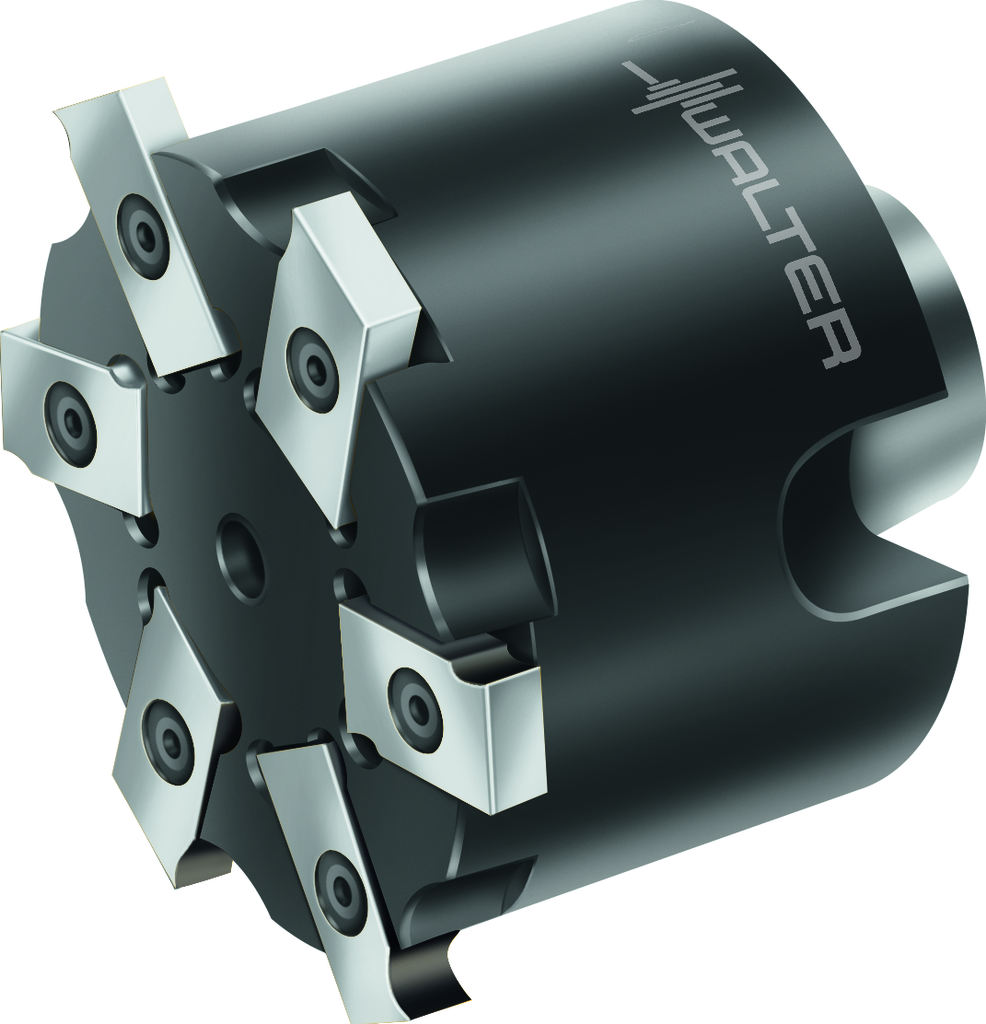

Products Cutting tools Milling Milling tools with indexable inserts Slot milling cutters Groove cutters F2036, P20200.., 90° NCT F2036M.0.50.040.063
Circular slot milling cutters

F2036M.0.50.040.063

EAN-code: 0222374727
M-circular-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 984,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W Mi F2036 NCT D 01
Enlarge
Description Symbol Value
Connection size code
d1
NCT 50
Max. depth of cut
ae max
4 mm
Number of indexable inserts
No. of inserts
6 PCE
Milling width
SBH13
3,15 mm
Milling width
SBH13
5,15 mm
Cutting edge diameter
Dc
63 mm
Maximum projection length
l4
40 mm
Tool designation
Designation
F2036M.0.50.040.063
Possible indexable inserts
Type
P20200-3.1; P20200-3.2; P20200-3.3
Number of teeth
Z
6
Compatible products
Adaptors
Accessories
Assembly parts
W A A100M2 SK P 01
A100M.2
DIN 69871-1 AD master
Show variations
W A AK200M2 SK P 01
AK200M.2
DIN 69871-1 AD/B master
Show variations
W A A102M NCT P 01
A102M.0
Reduction adaptor
Show variations
W-A-A101M-NCT-P-01
A101M.0
Extension adaptor
Show variations
W A A100M HSK P 01
A100M.7
DIN 69893-1 A master
Show variations
W A A100M4 SK P 01
A100M.4
MAS-BT JIS B 6339 master
Show variations
W A A100M1 SK P 01
A100M.1
DIN 2080 master
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
