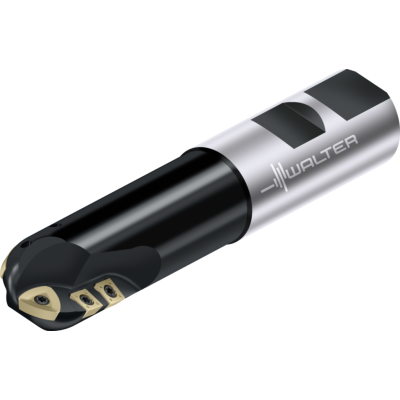

Copy milling cutters

F2239.W.020.Z01.25

EAN-code: 0367193727
M-copy-milling-4-Icon
M-WSP-pos-Icon
With peripheral cutting edges 3 or 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 587,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W Mi F2239 W D 01
Enlarge
Description Symbol Value
Number of indexable inserts
No. of inserts
2 PCE
Number of indexable inserts
No. of inserts
3 PCE
Cutting edge diameter
Dc
20 mm
Overall length
l1
110 mm
Maximum projection length
l4
59 mm
Tool designation
Designation
F2239.W.020.Z01.25
Radius
r
10 mm
Possible indexable inserts
Type
P26315R10
Weight
WT
0,23 kg
Number of teeth
Z
1
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SPMW A27 SILVER P 01
SPMW-A27
Positive square
Show variations
W MI SPMW A57 SILVER P 01
SPMW-A57
Positive square
Show variations
SPMT-F55-TTGPVD-P-01
SPMT-F55
Positive square
Show variations
SPMT-D51-TTGPVD-P-01
SPMT-D51
Positive square
Show variations
W MI P26315 SILVER P 01
P26315
Positive triangular
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
