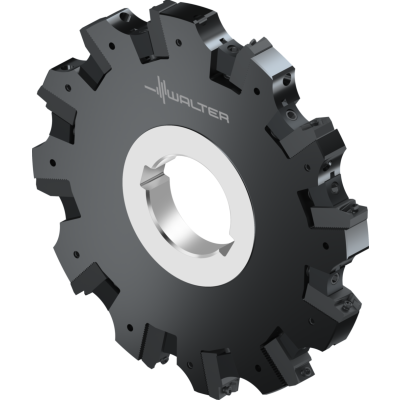

Slotting cutters for ‌slot milling

F2252.B.160.Z06.14.S766 NEW 2025

EAN-code: 4063466282744
M-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert Cross-toothed, cuts on three sides
P
M
K
N
S
H
O
VAT 0% 2143,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-F2252-B-KV-D-01
Enlarge
Description Symbol Value
Maximum cutting depth
ae max
46 mm
Number of indexable inserts - face
Number of WSP
6 EA
Number of indexable inserts - peripheral
Number of WSP
6 EA
Minimum milling width
SBmin
14 mm
Maximum milling width
SBmax
16 mm
Cutting diameter
Dc
160 mm
Connection diameter
d1
40
Hub diameter
d6
65 mm
Tool designation
Designation
F2252.B.160.Z06.14.S766
Hub thickness
NB
14 mm
Possible indexable inserts - face
Type
BC .. 0903 .. R
Possible indexable inserts - peripheral
Type
BC .. 0903 .. L
Number of teeth
Z
6
