Products Cutting tools Milling Milling tools with indexable inserts Slot milling cutters Adjustable slotting cutters F2252 three-sided cutting (BC..12..) F2252 three-sided cutting for BC..12... Slotting cutters for ‌slot milling F2252 F2252.BN.160.Z05.16.S767

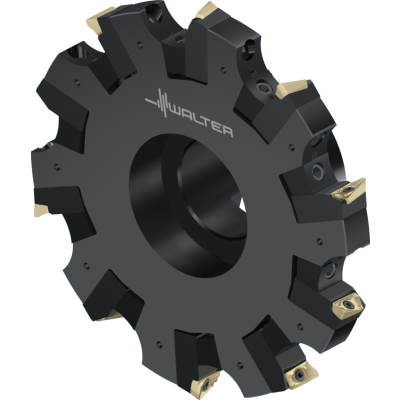

Slotting cutters for ‌slot milling

F2252.BN.160.Z05.16.S767 NEW 2025

EAN-code: 4063466282850
M-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert Cross-toothed, cuts on three sides
P
M
K
N
S
H
O
VAT 0% 2060,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-F2252-BN-KV-D-01
Enlarge
Description Symbol Value
Maximum cutting depth
ae max
40 mm
Number of indexable inserts - face
Number of WSP
5 EA
Number of indexable inserts - peripheral
Number of WSP
5 EA
Minimum milling width
SBmin
16 mm
Maximum milling width
SBmax
19 mm
Cutting diameter
Dc
160 mm
Connection diameter
d1
40
Hub diameter
d6
75 mm
Tool designation
Designation
F2252.BN.160.Z05.16.S767
Possible indexable inserts - face
Type
BC .. 1204 .. R
Possible indexable inserts - peripheral
Type
BC .. 1204 .. L
Number of teeth
Z
5
