Products Cutting tools Holemaking Reaming Solid carbide with internal cooling Through hole F2481 4031132347219

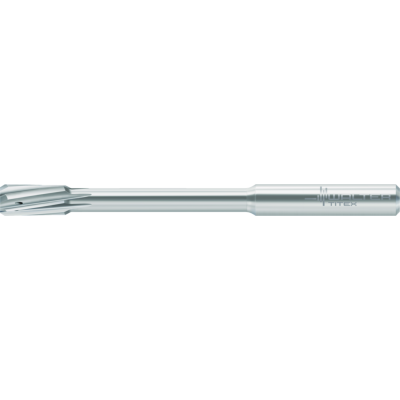

Solid carbide HSC reamers

F2481-15

EAN-code: 4031132347219
D-reaming-thru-hole-Icon
D-Drallw-links-Icon D-IK-Reiben-radial-Icon D-Tol-H7-Icon
Tolerance for 1/100 size: +0.004 mm
P
M
K
N
S
H
O
VAT 0% 306,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
T Dr F2481 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
15 mm
Connection diameter
d1
16 mm
Cutting edge diameter
d3
11,5 mm
Cutting edge length
Lc
22 mm
Shank length
l5
48 mm
Useable length
l3
77 mm
Overall length
l1
13 mm
Tool designation
Designation
F2481-15
Number of teeth
Z
6
