Products Cutting tools Holemaking Reaming Solid carbide with internal cooling Blind hole F2482 4031132347769

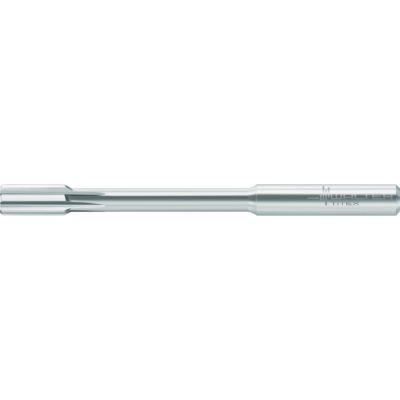

Solid carbide HSC reamers

F2482-12

EAN-code: 4031132347769
D-reaming-blind-hole-Icon
D-Drallw-gerade-Icon D-IK-Reiben-axial-Icon D-Tol-H7-Icon
Tolerance for 1/100 size: +0.004 mm
P
M
K
N
S
H
O
VAT 0% 212,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
T DR F2482 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
12 mm
Connection diameter
d1
12 mm
Cutting edge diameter
d3
11 mm
Cutting edge length
Lc
2 mm
Shank length
l5
45 mm
Useable length
l3
71 mm
Overall length
l1
12 mm
Tool designation
Designation
F2482-12
Number of teeth
Z
6
