Products Cutting tools Holemaking Reaming Solid carbide with internal cooling Blind hole F2482 4031132347806

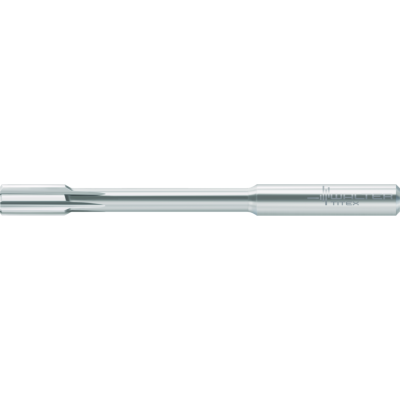

Solid carbide HSC reamers

F2482-13

EAN-code: 4031132347806
D-reaming-blind-hole-Icon
D-Drallw-gerade-Icon D-IK-Reiben-axial-Icon D-Tol-H7-Icon
Tolerance for 1/100 size: +0.004 mm
P
M
K
N
S
H
O
VAT 0% 254,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
T DR F2482 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
13 mm
Connection diameter
d1
14 mm
Cutting edge diameter
d3
11,5 mm
Cutting edge length
Lc
22 mm
Shank length
l5
45 mm
Useable length
l3
8 mm
Overall length
l1
13 mm
Tool designation
Designation
F2482-13
Number of teeth
Z
6
