Products Cutting tools Holemaking Reaming Solid carbide with internal cooling Blind hole F2482 4031132347820

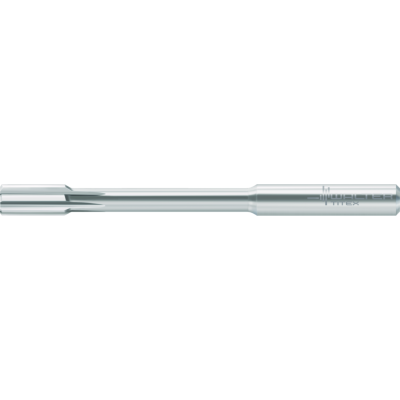

Solid carbide HSC reamers

F2482-15

EAN-code: 4031132347820
D-reaming-blind-hole-Icon
D-Drallw-gerade-Icon D-IK-Reiben-axial-Icon D-Tol-H7-Icon
Tolerance for 1/100 size: +0.004 mm
P
M
K
N
S
H
O
VAT 0% 278,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
T DR F2482 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
15 mm
Connection diameter
d1
16 mm
Cutting edge diameter
d3
13,5 mm
Cutting edge length
Lc
22 mm
Shank length
l5
48 mm
Useable length
l3
77 mm
Overall length
l1
13 mm
Tool designation
Designation
F2482-15
Number of teeth
Z
6
Compatible products
Adaptors
Products
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W DI D4580 VIOLETT P 01
D4580-METRIC
Chamfering tool
Show variations
