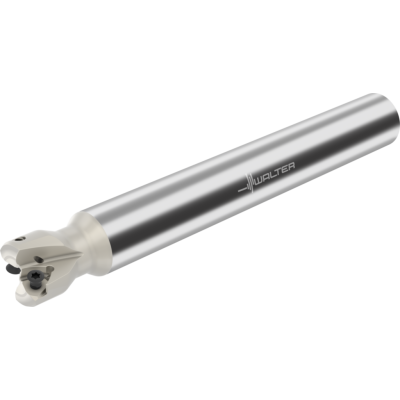

High-Feed-Fräser

F4030.Z25.025.Z02.01

EAN-code: 0727301724
M-face-milling-roughing-Icon M-plunging-open-Icon
M-Anstellw-21-Icon M-WSP-neg-Icon
6 cutting edges per indexable insert fz up to 3.5 mm
P
M
K
N
S
H
O
VAT 0% 360,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge diameter
Dc
13,4 mm
Cutting edge length
Lc
1 mm
Maximum radial depth of cut
ar
6 mm
Maximum cutting diameter
Da
25 mm
Overall length
l1
200 mm
Functional length
l4
35 mm
Tool designation
Designation
F4030.Z25.025.Z02.01
Possible indexable inserts
Type
P23696-1 . 0
Weight
WT
0,74 kg
Number of teeth
Z
2
Number of indexable inserts
No. of inserts
2 PCE
Compatible products
Products
Adaptors
Accessories
P23696-TTGPVD-P-01
P23696
Negative triangular
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
