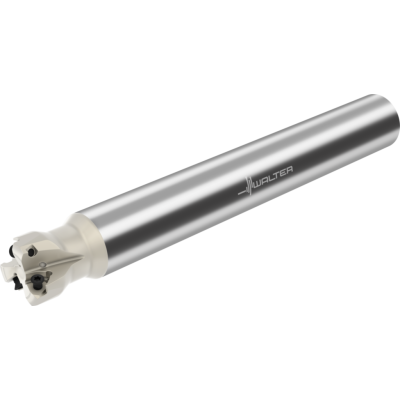

High-Feed-Fräser

F4030.Z32.032.Z03.01

EAN-code: 0727302724
M-face-milling-roughing-Icon M-plunging-open-Icon
M-Anstellw-21-Icon M-WSP-neg-Icon
6 cutting edges per indexable insert fz up to 3.5 mm
P
M
K
N
S
H
O
VAT 0% 412,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
1 mm
Maximum radial depth of cut
ar
7 mm
Cutting edge diameter
Dc
20,4 mm
Connection diameter
d1
32
Maximum cutting diameter
Da
32 mm
Overall length
l1
250 mm
Functional length
l4
40 mm
Tool designation
Designation
F4030.Z32.032.Z03.01
Possible indexable inserts
Type
P23696-1 . 0
Weight
1,47 kg
Number of teeth
Z
3
Number of indexable inserts
Number of WSP
3
Compatible products
Products
Adaptors
Accessories
Assembly parts
P23696-TTGPVD-P-01
P23696
Negative triangular
Show variations
P
M
K
N
S
H
O
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
